Effektforsterkere/Mono blokker
Skriv inn undertittel her
EAM lab
Signature One. Pris 216,000.-
- Solid State forsterker
- Dobbel mono
- Effekt 2x 350/620/1150 watt i 8/4/2 ohm
- Klasse A opp til 25 W
- 16 høystrømstransistorer per kanal
- Filter kapasitet > 220.000uf
- 2X 2000VA EAMlab transformatorer
- Total harmonisk forvrengningsstereodrift
(begge kanaldrevet) - 0.0029% med 8 ohm belastning - Frekvensrespons ved nominell effekt 2-80Khz
- Dempingsfaktor >200 til 20hz-20Khz refer 8 ohm
- Inngangsfølsomhet 2,8 Vrms for full effekt 8 Ohm• Inngangsimpedans 47 Kohm
- Signal/støy-forhold >115 Db vektet A
- Maksimal dimensjon 430 x 270 x 550 mm (DxHxW)
- Vekt 70 kg
- I lang tid ble effekt sett på som fokus for kvalitetsforsterkere, senere etterfulgt av totale harmoniske forvrengningsfaktorer.
Slike isolerte observasjoner er imidlertid ikke tilstrekkelige til å forklare egenskapene til en lyd som sendes ut av en forsterker.
Bare en global visning som vurderer den virkelige belastningen til en høyttaler, fører til gyldige resultater. En ideell forsterker må være stabil uavhengig av hvilken belastning som er sett, og må gi konstant forsterkning med null faseforskyvninger på alle frekvenser og ved enhver effekt.
Dette bør gjøres uten overdreven signalbaner eller "triks" som ofte brukes i transistorteknologi som overdreven negativ tilbakemelding og høye
gevinster eller, verre, med korreksjon via DC-frakoblingsnettverk av selve signalet.
Disse forsterkerne ville være perfekte på målebenkene, men da oppfører de seg nesten alltid verre enn en supermarkedradio
Formålet med SIGNATURE er å garantere en veldig lineær og rask forsterkning, uten endringer, som gir høye forsyningsstrømmer og alltid tilgjengelig raskt på lasten og sikrer total kontroll over høyttalerne og minimerer køer og resonanser som de fleste av forsterkere med en påfølgende lyd "smuss" umulig å holde i sjakk med forsterkninger av dårlig kvalitet eller laget med vakuumrør
76,990.-
På lager i svart
In this power amplifier we have gathered all the experience gained in the electroacoustic field in the course of
twenty years.
Power supply, output stages, preamplifying stages, components and protections are made in this
amplifier to provide excellent performance in any environment, condition, load.
600 Watts per channel on 4Ohm and 1000 on 2Ohm leave no doubt. ELEMENT 302 interfaces better with
the most demanding loudspeakers, providing unlimited power in every situation.
In this model a new philosophy of circuit approach has been adopted, starting from the supply stage up to the output stage. Without compromise,
without reservations. Like the microprocessor that controls the entire operation of all parameters
HDCAtm is the newly developed preamplifier stage designed and developed in the laboratories of
Eam Lab and literally means High Dynamic Current Amplifier that allows an amplification of the current signal before be subjected to the actual amplification Of the pilot stage, driver and output.
This stage is completely discrete components, is seen similar to an OpAmp and allows sonic superiority to amplify the current signal. The HDCA circuit has a bandwidth of 1Mhz, a distortion close to 0.00001%, linearity within 0.1db between 1hz and 250.000hz always guaranteeing a perfect interfacing with any source.
It's not all. HDCA is armored in an aluminum container and resined with special heat-coupled polymers. All this translates into an always perfect linear operation with temperatures ranging between -30 and + 150 ° c. to inexperienced eyes it may seem useless a job like that. it is essential to not allow the first stages of amplification of the signal, which are the most delicate and most frequent fluctuations due to external agents (AC, RF, vibrations), to «get dirty» and inevitably dirty the signal to be transmitted to the later stages . Thanks to the similar HDCA stadium no longer exist.
Feeding details
To guarantee an always high and clean output current, enormous transformers are needed. But the more transformers are bigger the more they tend to vibrate. ELEMENT 302 is equipped with 2 toroidal transformers of 1000VA each. We have solved the problem by resining the transformers in a non-magnetic container re-insulating the whole with a 3mm thick aluminum casing that protects sensitive amplification circuits
Attention to details
The aluminum casing also acts as a heat sink for the rectifying diodes, in this case 2, one per branch, capable of handling forward currents of over 500A each. All this power must obviously be dissipated.
In this case a radiant surface of over 80cm squared optimally dissipates and escapes every kind of problem.
Output current
The current that can be supplied is supplied by Sanken bipolar devices of the latest generation. ELEMENT 302 has 16 for each channel with current peaks that reach 272 Amper. The average can reach 140 constant amperes.
To ensure effective heat dissipation we opted for direct transistor / heatsink mounting without additional plates and the electrical insulation is given by a special military production mica that decreases the W / C ° ratio.
Protections
The importance of better protecting electronics and connected loads is of primary importance to us at Eam Lab. For this reason we have developed effective protections that do not alter the musical signal in any way. Specifically for this model, they have also been integrated by a microprocessor which increases its effectiveness and precision of intervention.
IDCL TM (Impedance Detecting & Current Limiting) it is a protection circuit that constantly monitors the output current of the power amplifiers comparing it with the load impedance. the IDCL circuit intervenes in case the output current should increase for various reasons. With this method it is possible to use ELEMENT302 even with impedance loads close to the short circuit without a slight mention of failure.
SVCSTM (Servo Controlled Current State) The imposing power of the amplifier must be treated appropriately and its management is entrusted to this circuit. The currents in play, often very high, are kept under control even when the amplifier is switched on to start working. To prolong the life of transformers and capacitors, the supply voltage is brought to full capacity only after a few seconds and not all at once. It goes from 30% to 100% in about 3 seconds from the ignition. In addition to this useful function the SVCS controls the power supplied by the transformer and limits its functioning only in case of excessive heat dissipation, lowering its efficiency gradually up to 70% of its capacity.
THLTM (Thermal Heat Limiting) The temperature of the final devices is managed by this circuit which always guarantees its correct functioning even in case of excessive thermal stress. The circuit intervenes when the temperature on the dissipators reaches the threshold of 75 ° c. and it makes sure to keep it stable within a tolerance of 10% by acting on micro-variations of the polarization of the final stages. The two LEDs on the front panel indicate the intervention of the THL circuit. this is a condition that occurs after a few hours of operation (in some cases after a few minutes, dependent on the connected load) and the amplifier in this condition can continuously work without the slightest problem for many hours.
ILP TM (Intelligent Lock Power) the ILP protection system encloses 3 different functions in a single circuit. detects any DC currents present on the final devices by blocking the outputs and disconnecting the connected load. in this regard, the task is entrusted to 2 30A relays with over 500,000 contact cycles. ILP is not a simple DC dector but a more complex system of protections able to detect every little variation of the continuous output voltage. even in the case of prolonged clipping, the circuit intervenes. Working in tandem with IDCL these two devices are able to guarantee unrivaled reliability for this amplifier.
For a long time, power has been the center of attention for quality amplifiers, followed by the factors of total harmonic distortion.
However, these isolated observations are not sufficient to explain the characteristics of a sound emitted by an amplifier.
Only a global vision that considers the real load of a diffuser leads to valid results. An ideal amplifier is
stable regardless of the load seen and must provide constant amplification with zero phase shifts on all frequencies.
This should be done without excessive signal paths or «tricks» that are often used in transistor technology such as excessive negative feedback and high gains or, worse, with the correction of the signal itself. These amplifiers are perfect for measuring benches but then, almost always, they behave when listening to valves worse.
The purpose of Eam Lab is to guarantee a very linear and fast amplification, without alterations, providing high delivery currents that can not be minimally realized with vacuum tubes.
- Spesifikasjoner
EAM lab Element 302: Dual mono effektforsterker.
300W 8 ohm/ 600W 4 ohm/ 1000W 2 ohm pr kanal
2000VA trafo og 100,000uf
De første 20Watt i ren klasse A
• Slew/rate 48 V/uS
• Demping factor 350
• Frekvensrespons 5hz - 28Khz +/- 0.05 db / 28Khz - 100Khz +/- 3db
• THD vs FR 0.003% @ 1Khz
• Dimensioni 40 x 42 x 22 cm. ( D x B x H )
57,990.- for paret
STUDIO 301 Monoblokker
Vi ønsket å legge lista lenger enn ytelsen til Studio 362. Her er da vår tilnærming til en "definitiv" versjon av forsterkning slik vi forstår det. Dermed ble STUDIO 301, monofonisk forsterker født som holder ytelsen på nivå med fortreffelighet uten å måtte selge en nyre for å ha den.
301-studien er den verdige etterfølgeren til forrige 351 . I denne siste versjonen har vi forbedret Design, nå gjort tynnere, og bedre posisjonert i miljøet i spesielt hvis du har tenkt å Plasser forsterkerne nær høyttalerne.Som vanlig har vi gitt stor betydning for fôringsstadiet. Denne delen veldig viktig for forsterkeren har blitt fullstendig redesignet i forhold til forrige modell. Den mektige Toroidtransformator er montert vertikalt på rammen, isolert fra kretser forsterkning fra en metallpartisjon og samtidig fra Strømbrudd.Vi har altså fått bedre avvisning av forstyrrelser ved å øke SNR-hastigheten betydelig ( Signal Til støyforhold ) for å oppnå en bedre renslighet og forståelighet av forsterket signal.
med STUDIO 301 kraft og lyd detaljer er på spennende nivåer og kontrollen av høyttalerne er TOTAL.
Over 300 watt (600 watt effekt over 2 ohm), denne forsterkeren leverer eksepsjonell musikalsk klarhet og høy effekt i et kompakt chassis. STUDIO 301 bruker komponenter av høyeste kvalitet og er håndbygget av dyktige håndverkere, og tilbyr en solid state-forsterker av høy verdi og kraft. Den velkjente EamLab raske, rene, musikalske lyden og det eksepsjonelle trøkket av de lave frekvensene leveres av et kraftig strømforsyningstrinn i tillegg til 6 par per kanal med høy strøm
BJT-transitor Eksepsjonelt egnet for kjøring av krevende høyttalere som forblir veldig dynamiske og raske selv ved høye volumer. Disse forsterkerne er egnet for elektrostatiske paneler, gulvhøyttalere med moduler med svært lav impedans og enda mindre dynamiske høyttalere som krever høy strøm. For imponerende ytelse i mellomklassen og ro i bunnen, er STUDIO 301 et beste kjøp med et høyt nivå av kostnad / betongforhold.
KRETSTOPOLOGI
Hvert forsterkertrinn drives separat og alle strømforsyninger stabiliseres og filtreres godt. Kraften leveres av en EamDualcorETM-transformator med en total effekt på 800VA og en lav ESR-filtreringsseksjon på over 40 000 uF garanterer energiforsyning selv ved høye volumer og lave belastningsimpedanser.
Påliteligheten og stabiliteten til å kjøre på lasten er betrodd 6 par per kanal med bipolare transistorer i Darlinghton MJL 3281 / MJL 1302-konfigurasjon
Prosjekteringen av PCB i SMD-teknologi tillater høy avvisning av vibrasjoner indusert av eksterne årsaker med en betydelig reduksjon av lydmikrofonen. Resultatet er større detaljer og fokus på scenen og instrumentene.
Transformatoren er også isolert av et metallhus. Dette minimerer magnetisk induksjon i delikate forsterkningskretser til fordel for lydkontrast og reduksjon av bakgrunnsstøy.
Hele filterseksjonen, inkludert likeretterbroene, er montert på et glasskeramisk PCB. Med denne metoden har vi eliminert ledningene i luften til fordel for lavere kontaktmotstand og større tilførsel av strøm til hovedstrømkretsene.
INN/UT-TILKOBLINGER• 1 par balanserte XLR• 1 RCA
• Ett par WBT-høyttalerterminaler
• IN/OUT-utløser
HDCA versjon 3 .
Det er det første trinnet i grensesnitt med selve forsterkeren og behandler både balanserte og single-ended signaler. Vi har lagt særlig vekt på denne delen, da det er den første tilnærmingen til en perfekt lydgjengivelse. Også for denne delen er strømforsyningene skilt og stabilisert. I tillegg er HDCA-modulene utskiftbare og oppgraderbare til fremtidige versjoner som vi vil gi ut, slik at du alltid kan ha en maskin i takt med nye lydopptaks- og reproduksjonsteknologier.
Vu-METER
De er direkte koblet til lasten og leser hele tiden den virkelige effekten som påføres den.
Spesifikasjoner1.
Dobbel monoforsterker som opererer i klasse A opptil 10 Watt• RMS-effekt per kanal 300 @ 8 ohm, 550 W @ 4 ohm, 900 @ 2 ohm• Inngangsimpedans: 47 Kohm via XLR, 22 Kohm via RCA • Slew/rate 30 V / uS
• THD 0,03 % ved full effekt på 8 Ohm• DF 200 på 8 ohm
ved 50hz• Følsomhet 2,4 Vrms for full effekt
• Frekvensrespons 10hz - 80Khz +/- 0,5 db • THD vs FR 0,003% @ 1KhzInput CMRR > 80 db
• Signal/støy-forhold >110 db
• Dimensjoner 33 x 38 x 22 cm. (B x D x H)
• Vekt 20 kg stk.
48,000.-
Kommer snart på lager
Denne kompakte stereoforsterkeren, som bruker 6 par per kanal av BJT MJL3281/MJL1302-transis, leverer 230 watt rms per kanal og tilbyr en full måling av "EAMLAB-lyd" til en realistisk pris. Ved hjelp av den kraftige strømforsyningen som er grunnlaget for EAMLAB-prosjekter, kan STUDIO 362-modellene levere ekstremt rene krefter kombinert med eksepsjonell dynamikk.
Disse robuste forsterkere er i stand til å gi eksepsjonelt bred lydgjengivelse fra alle satellitt-, minimonitor- eller store gulvsystemer.
I den begrensede versjonen har vi implementert i strømforsyningsstadiet en større filtreringskapasitet med hjemmelagde kondensatorer designet for å spesifikasjonere og bygget i Italia, en lav induksjonstransformator, mindre enn 0,9 tesla, for å minimere enda mer støyen fra de samme, rhodiumbelagte WBT-kontaktene og en helt aluminium chassi for større døvhet til vibrasjoner.
dessuten bruker selv inngangsstadiene flere utvalgte komponenter enn den klassiske versjonen, og belastningsmotstandene på senderne av transitorene er av typen lydkvalitet.
Spesifikasjon:
Dobbel monoforsterker som opererer i klasse A opp til 10 watt
• RMS-strøm per kanal 230 W ved 8 ohm, 400 W ved 4 ohm, 600 ved 2 ohm
• Inngangsimpedans: 47 Kohm via XLR , 47 Kohm via RCA
• Slew/rate 35 V/uS
• THD 0,003% ved full effekt på 8 Ohms
• DF 300 på 8 ohm ved 50hz
• Følsomhet 1,4 Vrms for full effekt
• Frekvensrespons 20hz - 28 Khz +/- 0,05 db / 5hz - 100 Khz +/- 3db
• THD vs FR 0,003% ved 1Khz
• Inngang CMRR > 80 db
• Signal-til-støy-forhold >110 db
• Dimensjoner 33 x 42 x 21 cm. ( D x B x H )
• Vekt 30 kg
45,600.-
På lager i svart
The new Studio 362 amplifier moves the sonic limit to an even higher level
The new circuit layout and the new highly selected components offer such high results that they push the "sound definition" feature even higher.
The new instrumentation components, the large power supply circuit and the high dumping factor ensure that the loudspeakers are clearly expressed to the limits of their capacities.
Characteristics of the power supply stage
the true heart of every amplifier. The extreme attention to this detail is essential for us.
Two transformers with separate windings and wound on a single core for a total power of 1,200 Va that feed the rectifier circuits mounted on a single PCB without flying wiring so as to allow a connection without contact resistances.
This design shortens the electrical path from the transformer to the final output stages by reducing overall impedance and allowing the circuit to respond faster by better controlling the speakers and more accurately.
Input signal processing
the most delicate, fundamental part to be treated with extreme care, because it is this stage that finally determines the overall performance of the appliance
this delicate task is entrusted to the HDCA modules that have reached their third version. Today even more refined, clear and transparent.
HDCA is assembled with components selected for their linearity and bandwidth characteristics. The circuit is operating in open loop and the feedback is so low that it becomes practically negligible.
The circuit is operating in pure class A and does not use decoupling capacitors through various stages of signal processing.
The pursuit of perfect amplification is a well-known theme in high-end audio. New technologies present new approaches, while looking to the past provides inspiration for the future.
It is with this spirit that we have developed the new STUDIO line, with a design recommended by the best tradition and with a specific target sound: deep and expansive stage, accurate image positioning, extended and defined bass response and total control over the speakers also at very low impedances
With these requisites well planted in our DNA, STUDIO 362 was born
Power section
revolves around a circuit design in cascode configuration. This configuration allows a wide and extended bandwidth and the driving of the power amplifiers takes place through a Darlington type configuration.
6 pairs per channel of MJL 3281 / MJL 1302 bipolar transistors ensure reliability and stability in any condition of use.
The new generation of circuits with SMD components allows shorter signal paths, greater rejection of disturbances and a significant reduction in «microphonical» due to vibrations
- Spesifikasjoner
- Dual mono amplifier operating in class A up to 10 Watts
- RMS power output, for channel 230 W @ 8 ohm , 400 W @ 4 ohm , 600 @ 2 ohm
- Input impedance : 47 Kohm via XLR , 47 Kohm via RCA
- Slew/rate 35 V/uS
- DF 300 su 8 ohm a 50hz
- Input sensivity 1.4 Vrms per piena potenza
- Frequence response 20hz - 28Khz +/- 0.05 db / 5hz - 100Khz +/- 3db
- THD vs FR 0.003% @ 1Khz
- Input CMRR > 80 db
- Signal to noise ratio >110 db
- Dimension 33 x 42 x 21 cm. ( P x L x H )
- weight 30 kg
35,000.-
EamLab Amplifiers enjoy universal recognition from both music lovers and industry professionals. As a consequence of a relentless passion for superb performance and unparalleled quality of construction, Eamlab is constantly evolving in the research and innovation of its products.

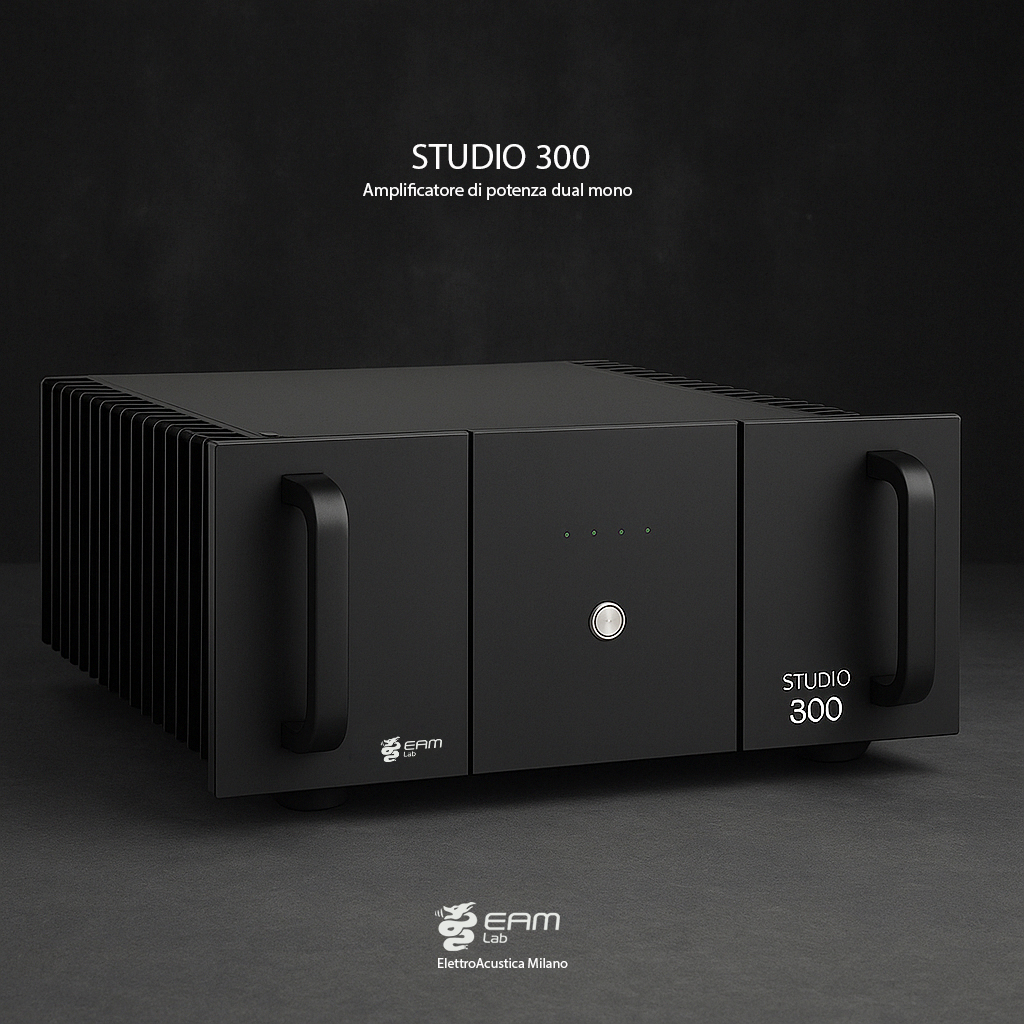

Studio300 is the evolution of a project born to drastically change the rules of sound reproduction in the professional field for recording and mastering and at the same time being the ideal «motor» even in the domestic environment for high definition systems.
The innovative circuits and the evolution of the components continue our tradition also on Studio 300 and we highlight in this amplifier as a very low distortion, a reduced background noise and a greater bandwidth presenting to the listeners a clear and crystalline window for their favorite recordings.
The HDCA patent and a careful circuit design move the listener so close to the music with such visceral realism where the experience is comparable to the best live performances.
What defines «high performance»?
Reproduce exactly what is captured during registration without coloring and without adding distortions. Each Eamlab amplifier is designed without compromise to achieve these high goals
What's new ?
Eamlab engineering over the years has used the greatest resources to design and innovate the circuits by finding new methods to reduce noise and distortion to detect the smallest nuances of ever
The Eamlab and studio300 amplifiers use significant improvements including:
* Drastic improvement of CMRR (common mode noise rejection)
* Better improvement in EMI / RFI waste
* Reduced consumption in music media thanks to an active polarization
* Aesthetics with clean lines and «solid» finish
To find a new ways to eliminate distortion our circuits are designed with a new overview. Studio300 amplifiers are equipped with a patented input circuit optimized on linearity.
One of the arrays of discrete transistors smd is the first stage of the amplifier and provides the first gain of 6 db. The input stage is so transparent and its measurable distortion is less than 0.0001%.
This stage is armored and resined in a soft iron container and makes the amplifier practically immune to RFI noise and other environmental induced noise
The balanced quad-compliant output mimics the characteristics of a class A design with dramatically lower distortion than conventional class AB on all frequencies.
Each amplifier channel is completely independent and is powered separately. in Eamlab we strive for precision and transparency because this is what sounds best.
When reproducing the system is faithful to the recording, the listener can enjoy the finer details, capturing the depth and soul of the performance as the artist intended it.
Unquestionable quality
Studio Amplifiers use innovative designs to achieve superior performance that remains constant over time.
Each amplifier is produced at the state of the art in our Milan office using many components of local origin. The members of our staff take with pride the whole realization of their highly specialized craftsmanship.
All Eamlab products are tested on the test bench for 50 hours before shipping. The amplifiers switch between maximum and minimum power with cycles of 15 minutes to discover any anomalies that could be introduced by thermal stress. Our reputation for reliability is unprecedented.
Not only are our amplifiers subjected to stringent testing, but everyone must achieve excellence in performanceTo demonstrate our commitment and the excellence of our products, every Eamlab product is guaranteed to be free from defects in materials and workmanship for a complete cycle of 20 years.
Power 20 to 20 Khz
* 8 ohm 200 Wrms
* 4 ohm 360 Wrms
* 2 ohm 500 Wrms
Thd +N
* < 0.002% full power 8 ohm
* < 0.003% full power 4 ohm
- Spesifikasjoner
Frequency Resp. 10hz to 80 Khz +/- 0.8 db
Damping factor : 300 refer 8 ohm @ 50 hz
Input CMRR : > 85 db
Noise ratio > 114 db
Input sens. XLR / RCA 1 Vrms
Input impedance : 47 Kohm XLR / 22 Kohm RCA
Dimension : 350 x 220 x 420 mm
Weight : 28 Kg
21,600.-
The Studio 162 amplifier was created to meet the new demands of sound reinforcement.
In this new model we wanted a high enough power able to drive without difficulty even demanding loads and at the same time a compact design and a captivating and functional aesthetics that has been made possible to fit into any environment without sacrificing dynamic quality and sonic performance .
The new instrumentation components, the large power supply circuit and the high dumping factor ensure that the loudspeakers are clearly expressed to the limits of their capacities.
Highlights
On a single Board there are the two amplification channels, the protection stage and the power circuit filter
This design allows you to shorten the electrical path from the transformer to the final output stages by reducing overall impedance and allowing the circuit to respond faster by better controlling the speakers and more accurately.
The energy that can be developed is entrusted to a 500 VA transformer capable of supplying all the power and dynamics required in any condition of use
The pursuit of perfect amplification is a well-known theme in high-end audio. New technologies present new approaches, while looking to the past provides inspiration for the future.
It is with this spirit that we have developed the new STUDIO line, with a design recommended by the best tradition and with a specific target sound: deep and expansive stage, accurate image positioning, extended and defined bass response and total control over the speakers also at very low impedances
The power stadium
revolves around a circuit design in cascode configuration. This configuration allows a wide and extended bandwidth and the driving of the power amplifiers takes place through a Darlington type configuration.
2 pairs per channel of bipolar MJL 3281 / MJL 1302 transistors ensure reliability and stability in any condition of use.
The new generation of circuits with SMD components allows shorter signal paths, greater rejection of disturbances and a significant reduction in «microphonic» due to vibrations
- Spesifikasjoner
- RMS power both channel driven 90 W @ 8 ohm , 160 W @ 4 ohm , 250 @ 2 ohm
- • Input impedance : 47 Kohm via XLR , 22 Kohm via RCA
- • Slew/rate 35 V/uS
- • DF 250 su 8 ohm a 50hz
- • Input Sensivity 1.4 Vrms per piena potenza
- • Frequency response 20hz - 28Khz +/- 0.05 db / 5hz - 100Khz +/- 3db
- • THD vs FR 0.003% @ 1Khz
- • Input CMRR > 80 db
- • Signal to noise ratio >107 db
- • Dimension 36 x 42 x 9 cm. ( P x L x H )
- • weight 15 kg
Parasound
Power Output
450 x1 watts @ 8 Ω
850 x1 watts @ 4 Ω
1300 x1 watts @ 2 Ω
Power measurements are with 120 VAC:
0.15% THD, RMS continuous power,
full audio band (20 Hz - 20 kHz)
Class A Power Output
25 Watts, bias switch set to high
10 Watts, bias switch set to low
Current Capacity
180 amps, peak
Slew Rate > 130 volts per microsecond
Frequency Response
2 Hz - 120 kHz, +0/-2 dB
20 Hz - 20 kHz, +0/-0.25 dB
Total Harmonic Distortion (THD)
< 0.15 % at full power
< 0.02 % at typical listening levels
IM Distortion
< 0.03 %
TIM
Unmeasurable
Damping Factor
> 1200 at 20 Hz
Input Impedance
Unbalanced: 50 kΩ
Balanced: 100 kΩ, (50 kΩ per leg)
S/N Ratio, inputs shorted
>122 dB, IHF A-weighted, bias set to Low
>120 dB, IHF A-weighted, bias set to High
>113 dB, Unweighted, bias set to Low
>111 dB, Unweighted, bias set to High
Total Gain
29 dB (Gain switch set to normal)
23 dB (Gain switch set to low)
Input Sensitivity for 28.28 V Output into 8 Ω
Unbalanced: 1 V
Balanced: 1 V per leg
(Gain switch set to normal)
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirement
2.5 mV - 10 mV
Dimensions
Height without feet: 7-1/8" (181 mm)
Height with feet: 7-3/4" (197 mm)
Depth: 20" (508 mm)
Depth with cables: 21-1/2" (546 mm)
Shipping Carton Dimensions
Width: 29-1/2" (750 mm)
Depth: 27-1/2" (700 mm)
Height: 15-3/4" (400 mm)
Net Weight
83 lb. (37.6 kg)
Shipping Weight
107 lb. (48.5 kg)
Power Requirement
Standby: <1 Watt
Idle (bias set to low): 145 Watts
Idle (bias set to high): 275 Watts
Typical Listening levels: 400 Watts
Maximum: 1500 Watts 253,980.- pr par
Power Output - Both Channels Driven
400 watts x 2, 8 Ω
600 watts x 2, 4 Ω
Power Output - Bridged Mode
1200 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended
Power measurement parameters are at 120 VAC:
0.05% THD, RMS continuous power,
full audio band (20 Hz - 20 kHz)
Current Capacity
90 amps peak, per channel
Slew Rate
> 130 volts per microsecond
Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.25 dB
Total Harmonic Distortion (THD)
< 0.05 % at full power
< 0.03 % at typical listening levels
IM Distortion
< 0.04 %
TIM
Unmeasurable
Inter-channel Crosstalk
> 87 dB at 1 kHz
> 72 dB at 20 kHz
Input Impedance
Unbalanced: 33 kΩ
Balanced: 66 kΩ,(33 kΩ per leg)
Total Gain
29 dB
Input Sensitivity for 28.28 V Output into 8 Ω
Unbalanced: 1 V
Balanced: 1 V per leg
S/N Ratio
> 116 dB, input shorted, IHF A-weighted
> 111 dB, input shorted, unweighted
Damping Factor
1000 at 20 Hz
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements
2 mV - 10 mV
Dimensions
Width: 17-5⁄8" (448 mm)
Height without feet: 7-1⁄8" (181 mm)
Height with feet: 7-3/4" " (197 mm)
Depth: 20" (508 mm)
Depth with cables: 21-1⁄2" (546 mm)
Net Weight
73 lb. (33.1 kg)
Shipping Weight
90 lb. (40.8 kg)
Power Requirement
Standby: 1 Watt
Idle (no music playing): 225 Watts
Typical listening levels: 400 Watts
Maximum: 1500 Watts 89,990.-
Power Output - Stereo Mode (0.1% THD)
300 watts x 2, 8 Ω both channels driven
500 watts x 2, 4 Ω both channels driven
Power Output - Bridged Mode (0.1% THD)
1000 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended
Power measurement are at 120 VAC:
0.1% THD, RMS continuous power,
full audio band (20 Hz - 20 kHz)
Current Capacity
60 amps peak, per channel
Slew Rate
> 130 volts per microsecond
Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.25 dB
Total Harmonic Distortion (THD)
< 0.1 % at full power
< 0.03 % at typical listening levels
IM Distortion
< 0.04 %
TIM
Unmeasurable
Inter-channel Crosstalk
> 80 dB at 1 kHz
> 70 dB at 20 kHz
Input Impedance
Unbalanced: 33 kΩ
Balanced: 66 kΩ,(33 kΩ per leg)
Total Gain
29 dB
Input Sensitivity for 28.28 V Output into 8 Ω
Unbalanced: 1 V
Balanced: 1 V per leg
S/N Ratio
> 115 dB, input shorted, IHF A-weighted
> 110 dB, input shorted, unweighted
Damping Factor
> 1100 at 20 Hz
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements
2 mV - 10 mV
Dimensions
Width: 17-5/8" (448 mm)
Height without feet: 7-1/8" (181 mm)
Height with feet: 7-3/4" " (197 mm)
Depth: 20" (508 mm)
Depth with cables: 21-1/2" (546 mm)
Net Weight
71 lb. (32.2 kg)
Shipping Weight
88 lb. (39.9 kg)
Power Requirement
Standby: 1 Watt
Idle (no music playing): 160 Watts
Typical Listening levels: 300 Watts
Maximum: 1400 Watts 54,990.-
Power Output - Stereo Mode (0.06% THD)
160 watts x 2, 8 Ω both channels driven
240 watts x 2, 4 Ω both channels driven
Power Output - Stereo Mode (0.9% THD)
210 watts x 2, 8 Ω both channels driven
300 watts x 2, 4 Ω both channels driven
Power Output - Bridged Mode (0.06% THD)
500 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended
Power Output - Bridged Mode (0.9% THD)
600 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended
*All Power measurement are at 120 VAC,
RMS continuous power, full audio band (20 Hz - 20 kHz)
Current Capacity
45 amps peak, per channel
Slew Rate
> 130 volts per microsecond
Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.25 dB
Total Harmonic Distortion (THD)
< 0.06 % at full power
< 0.03 % at typical listening levels
IM Distortion
< 0.04 %
TIM
Unmeasurable
Inter-channel Crosstalk
> 85 dB at 1 kHz
> 70 dB at 20 kHz
Input Impedance
Unbalanced: 33 kΩ
Balanced: 66 kΩ,(33 kΩ per leg)
Total Gain
29 dB
Input Sensitivity for 28.28 V Out (8 Ω Load)
Unbalanced: 1 V
Balanced: 1 V per leg
S/N Ratio
> 112 dB, input shorted, IHF A-weighted
> 107 dB, input shorted, unweighted
Damping Factor
> 800 at 20 Hz
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements
2 mV - 10 mV
Dimensions
Width: 17-1/4" (437 mm)
Depth: 15"-1/4" (388 mm)
Depth, with cables 17" (432 mm)
Height, with feet: 4-1/8" (105 mm)
Height, without feet: 3-1/2" (89 mm), 2U
Net Weight
27 lb. (12.2 kg)
Shipping Weight
34 lb. (14.4 kg)
Power Requirement
Standby: <1 Watt
Idle (no music playing): 75 Watts
Typical Listening levels: 125 Watts
Maximum: 800 Watts
110-125 VAC 60 Hz or 220-250 VAC 50 Hz 26,990.-
Continuous power output:
250 watts RMS x 3, 20 Hz - 20 kHz, 8 Ω, all channels driven
400 watts RMS x 3, 20 Hz - 20 kHz, 4 Ω, all channels driven
Current capacity:
60 amperes peak per channel
Power bandwidth:
5 Hz - 100 kHz, +0/-3 dB at 1 watt
Total harmonic distortion:
< 0.2 % at full power
IM distortion: balanced 16 V rms
< 0.04 %
Slew rate:
> 130 V/µsecond
Dynamic headroom:
> 1.5 dB
Interchannel crosstalk:
> 78 dB at 1 kHz;
> 63 dB at 20 kHz
Input sensitivity:
1 V for 28.28 V (THX Reference)
Input impedance:
47 k Ω unbalanced; 94 k Ω balanced
S/N ratio:
112 dB, input shorted, IHF A-weighted
Damping factor:
> 1100 at 20 Hz
Dimensions:
17-1/2" w x 7-5/8" h x 20" d, 7" h without feet
Net weight: 65 lb.
Shipping weight: 79 lb. 53,990.-
Power Output - All 5 Channels Driven
180 watts x 5, 8 Ω
255 watts x 5, 4 Ω
Power Output - 2 Channels Driven
225 watts x 2, 8 Ω
350 watts x 2, 4 Ω
Power measurements parameters with 120VAC
0.05% THD, RMS continuous power,
full audio band (20 Hz - 20 kHz)
Current Capacity:
45 amperes peak, per channel
Dynamic Headroom:
>1.5dB
Slew Rate
> 130 volts per microsecond
Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.3 dB
Total Harmonic Distortion (THD)
< 0.05 % at full power
< 0.03 % at typical listening levels
IM Distortion
< 0.04 %
TIM
Unmeasurable
Interchannel Crosstalk
> 78 dB at 1 kHz
> 63 dB at 20 kHz
Input Impedance
Unbalanced: 47 kΩ
Balanced: 94 kΩ, 47 kΩ per leg
Input Sensitivity for 28.28 V Output into 8 Ω
Unbalanced: 1 V
Balanced: 1 V per leg
Total Gain: 29 dB
S/N Ratio
> 112 dB, input shorted, IHF A-weighted
> 102 dB, input shorted, unweighted
Damping Factor
> 1100 at 20 Hz
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements
2 mV - 10 mV
Dimensions
Width: 17-1/4" (437 mm)
Height without feet: 5-1/4" (133 mm)
Height with feet: 5-7/8" (149 mm)
Depth: 20" (508 mm)
Depth with cables: 21-1/4" (540 mm)
Net Weight
55 lb. (25 kg)
Shipping Weight
69 lb. (31.3 kg)
Power Requirement
Standby: 1 Watt
Idle: 125 Watts
Maximum: 1500 Watts 49,990.-
Continuous power output:
250 watts RMS x 5, 20 Hz - 20 kHz, 8 Ω, all channels driven
400 watts RMS x 5, 20 Hz - 20 kHz, 4 Ω, all channels driven
Current capacity:
60 amperes peak per channel
Power bandwidth:
5 Hz - 100 kHz, +0/-3 dB at 1 watt
Total harmonic distortion:
< 0.2 % at full power
IM distortion: balanced 16 V rms
< 0.04 %
Slew rate:
> 130 V/µsecond
Dynamic headroom:
> 1.5 dB
Interchannel crosstalk:
> 78 dB at 1 kHz;
> 63 dB at 20 kHz
Input sensitivity:
1 V for 28.28 V, THX Reference Lev
Input impedance:
47 k Ω unbalanced; 94 k Ω balanced
S/N ratio:
112 dB, input shorted, IHF A-weighted
Damping factor:
> 1100 at 20 Hz
Voltage:
110V - 120V
Dimensions:
17-1/2" w x 7-5/8" h x 20" d, 7" h without feet
Net weight: 80 lb. 87.990.-
All Channels Driven
275 watts x 2, 8Ω
400 watts x 2, 4Ω
400 watts x 2, 2Ω (Load switch set to 2-3Ω)
Bridged Mono
750 watts x 1, 8Ω
750 watts x 1, 4Ω (Load switch set to 2-3Ω)
Current Capacity
45 amps peak per channel
Frequency Response
20 Hz - 50 kHz, +0/-3 dB, 1 watt
Dynamic Headroom - 1.6 dB
Total Harmonic Distortion
0.20% at full rated output
0.015% at average listening levels
IM Distortion - 0.05 %
Transient IM Distortion - Not measurable
S/N Ratio
114 dB at rated output, IHF A-weighted
106 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted
Input Impedance - 33 k Ω
Input Sensitivity
1 V in for 28.28 V out, THX standard
Inter-Channel Crosstalk
85 dB @1 kHz, 73 dB @10 kHz, 67 dB @ 20kHz
Damping Factor - Over 150 at 20Hz
12V Trigger Turn On - DC 9 - 12V, 15 mA
Audio Turn On
Quieter: 1 mV
Louder: 6 mV
AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
0.5 watts standby
35 watts Idle (no audio)
1000 watts full output
Dimensions
17.25" Wide
18.5" Deep, with cables connected
6" High with feet, 5.25" panel only (3U)
(437 x 470 x 153mm, 133mm panel only)
Net Weight - 43 lbs (19.5 kg) 28.990.-
All Channels Driven
150 watts x 2, 8Ω
225 watts x 2, 4Ω
225 watts x 2, 2Ω (Load switch set to 2-3Ω)
Bridged Mono
400 watts x 1, 8Ω
400 watts x 1, 4Ω (Load switch set to 2-3Ω)
Current Capacity
35 amps peak per channel
Frequency Response
20 Hz - 50 kHz, +0/-3 dB, 1 watt
Dynamic Headroom - 1.3 dB
Total Harmonic Distortion
0.25% at full rated output
0.015% at average listening levels
IM Distortion - 0.05 %
Transient IM Distortion - Not measurable
S/N Ratio
114 dB at rated output, IHF A-weighted
106 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted
Input Impedance - 33 k Ω
Input Sensitivity
1 V in for 28.28 V out, THX standard
Inter-Channel Crosstalk
85 dB @1 kHz, 73 dB @10 kHz, 67 dB @ 20kHz
Damping Factor - Over 150 at 20Hz
12V Trigger Turn On - DC 9 - 12V, 15 mA
Audio Turn On
Quieter: 1 mV
Louder: 6 mV
AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
0.5 watts standby
32 watts Idle (no audio)
550 watts full output
Dimensions
171/4" Wide
16" Deep, with cables connected
4.25" High with feet, 3.5" panel only (2U)
(437 x 406 x 107mm, 88.2 mm panel only)
Net Weight - 27 lbs (12.3 kg) 16.990.-
Power Output - (RMS power, 20 Hz - 20 kHz)
All Channels Driven
90 watts x 2, 8Ω
150 watts x 2, 4Ω
150 watts x 2, 2Ω (Load switch set to 2-3Ω)
Bridged Mono
200 watts x 1, 8Ω
200 watts x 1, 4Ω (Load switch set to 2-3Ω)
Current Capacity
20 amps peak per channel
Frequency Response
20 Hz - 50 kHz, +0/-3 dB, 1 watt
Dynamic Headroom - 1.3 dB
Total Harmonic Distortion
0.35% at full rated output
0.025% at average listening levels
IM Distortion - 0.05 %
Transient IM Distortion - Not measurable
S/N Ratio
110 dB at rated output, IHF A-weighted
103 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted
Input Impedance - 33 k Ω
Input Sensitivity
800 mV for full rated output (28dB)
Inter-Channel Crosstalk
80 dB @1 kHz, 72 dB @10 kHz, 65 dB @ 20kHz
Damping Factor - Over 150 at 20Hz
12V Trigger Turn On - DC 9 - 12V, 15 mA
Audio Turn On
Quieter: 1 mV
Louder: 6 mV
AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
0.5 watts standby
25 watts Idle (no audio)
350 watts full output
Dimensions
17-1/4" Wide
16" Deep, with cables connected
2-1/2" High with feet, 1-3/4" panel only (1U)
(437 x 406 x 63mm, 44.1 mm panel only)
Net Weight - 20 lbs (9.1 kg) 14.990.-
Power Output
RMS, Both Channels Driven (20 Hz - 20 kHz)
350 watts x 2 @ 8 Ω
600 watts x 2 @ 4 Ω or 2 Ω
Minimum Speaker Impedance (Output A+B)
Stereo or Mono Mode: 2 Ω
Subwoofer Mode: 4 Ω
Note: Operation at these minimum impedances might require additional ventilation.
Frequency Response
10 Hz - 70 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.8 dB
Total Harmonic Distortion
< 0.05 % at typical listening levels
< 0.9 % at full power
Inter-channel Crosstalk
70 dB at 20 kHz
Input Sensitivity:
2 Volts = Full output (350 Watts @ 8 Ω)
Total gain = 29 dB (Level controls set to Maximum)
S/N Ratio
> 100 dB, input shorted, unweighted
> 114 dB, input shorted, IHF A-weighted
High and Low Pass Crossovers
Sub Mode and Sub out jack: 80 Hz, 24 dB per octave
High Pass Filter: 30 Hz or 80 Hz, 12 dB per octave
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements
2 mV audio signal (8-15 minutes turn off delay)
AC Power Requirement
1500 Watts maximum
100 Watts typical (music playing, typical listening level)
30 Watts idle (no music playing)
0.5 Watts in standby
110-240 VAC 50/60 Hz
Dimensions
Width: 17.25" (438 mm)
Depth: 14.5" (368 mm)
Depth: 16.25" (412 mm) with cables connected
Height, with feet: 4.25" (108 mm)
Height, without feet: 3.5" (89 mm), 2U
Weight
Net: 15 lbs. (6.8 kg)
Shipping: 22.25 lbs. (10.1 kg) 19,990.-
Continuous power output:
45 watts RMS x 2, 20 Hz - 20 kHz, 8 Ω, both channels driven
60 watts RMS x 2, 20 Hz - 20 kHz, 4 Ω, both channels driven
90 watts RMS x 1, 20 Hz - 20 kHz, 8 Ω, minimum impedance
Current capacity:
12 amperes peak per channel
Frequency response:
5 Hz - 100 kHz, +0/-3 dB
Total harmonic distortion:
< 0.07 % full power
< 0.02 % typical levels
IM distortion:
< 0.05 %
Dynamic headroom:
1.5 dB
Inter-channel crosstalk:
80 dB at 1 kHz; 60 dB at 20 kHz
Input Impedance:
33 k Ω
Input Sensitivity:
600 mV; 1.5 V for full output
S/N Ratio:
116 dB, input shorted, IHF A weighted
Dimensions:
8-1/2 w x 1-3/4 h x 10 d, 2 h with feet
Net weight: 7 lbs. 6,590.-
